Accessing and Mounting Windows 10 Shared Folder from Remote Network

This article introduces how to access and mount Windows 10 shared folders from a remote network. Previously, I wrote an article about mounting Windows shared share folders on ubuntu 16.04 or 18.04 on a local network.

Ubuntu 18.04でWindows 10の共有フォルダをマウントする方法 windows 10のシェア(共有)フォルダをubuntu16.04でマウント(同期)する

sudo mount -t  cifs //192.168.3.19/_sync_ ~/share -o user=ifgm2,pass=hogefuga,dir_mode=0777,file_mode=0777

This time, I tried it on a whim and was able to access shared folders remotely, so I’ll introduce it.

The story is simple: just forward the port used by the shared folder.

what port or ports are used for File sharing in windows? - Super User

According to the above, the port used by Windows 10 shared folders seems to be 445.

When I actually checked the port communication status, it indeed looks like it.

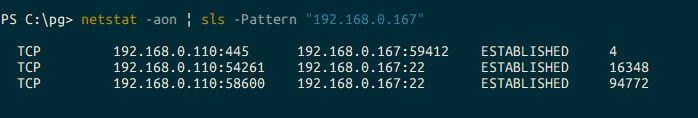

PS C:\pg> netstat -aon | sls -Pattern "192.168.0.167"

  TCP         192.168.0.110:445      192.168.0.167:59412    ESTABLISHED     4
  TCP         192.168.0.110:54261    192.168.0.167:22       ESTABLISHED     16348
  TCP         192.168.0.110:58600    192.168.0.167:22       ESTABLISHED     94772

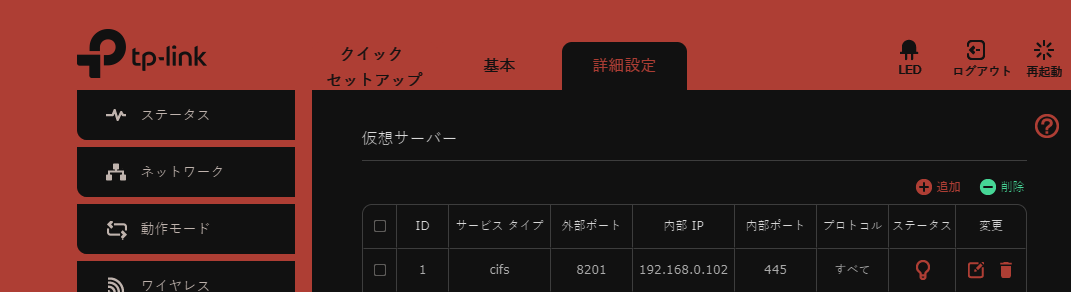

So, set up port forwarding on the WiFi. Configure it like this:

192.168.0.102:445 -> [publicIP]:8201

The WiFi router I use that can do port forwarding can be referenced below.

光回線工事後、４台のルーターを実際に買って検証した結果導き出された最高のwifiルーターとは

It was fine in my case, but depending on the situation, you may need to configure the firewall at this point to open 445.

Now, to actually mount with the mount command, but to specify a port number with mount, do it like this:

mkdir ~/share01t
sudo mount -o port=8201 -t cifs //[publicIP]/__share__ ~/share01t -o user=hogehoge,pass=hogehoge,dir_mode=0777,file_mode=0777

linux - How to mount an remote filesystem with specifying a port number - Unix & Linux Stack Exchange

This should have mounted it.

Also, I was thinking of doing this on Xserver rental server this time, but rental servers don’t have sudo privileges, so it seems you can’t use commands like the above. It seems you can basically mount, but you can’t use the -o option.

mount: only root can use "--options" option

I’m not well-versed in security, so I’m not certain, but this is probably risky security-wise. If the Windows username and password are broken through brute force, access to the shared folder would be permitted.

I don’t think the communication itself is secure like sshfs, so depending on the situation, the password entered from the command line might leak as is.

It would be nice if fuse and sshfs were allowed in WSL, so we wouldn’t have to do such troublesome and insecure things.
